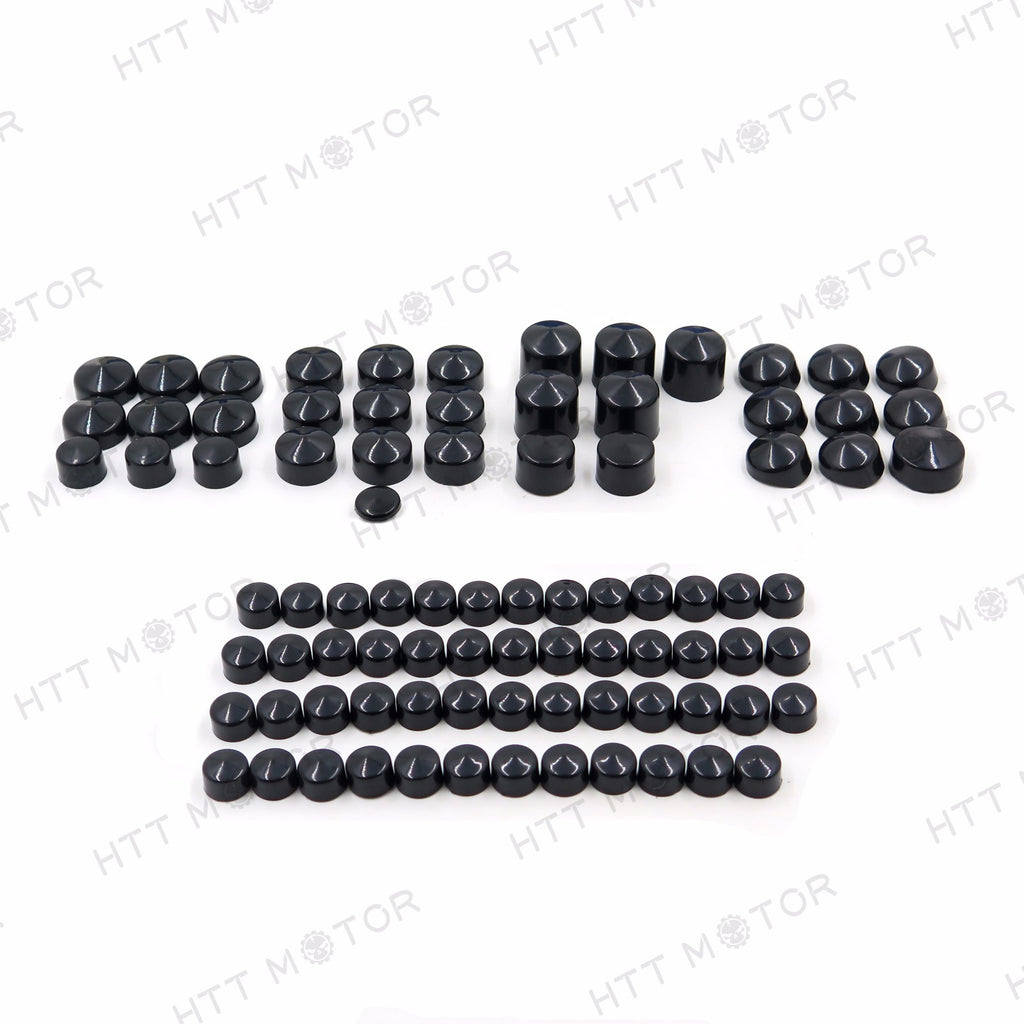

HTTMT- For 1999-2005 HARLEY-DAVIDSON Dyna Black Engine & Misc Bolt Nuts 86 Pieces

SKU: USMT247-023-BK

HTTMT- For 1999-2005 HARLEY-DAVIDSON Dyna Black Engine & Misc Bolt Nuts 86 Pieces

$24.99

Barcode:

DESCRIPTION

Features:

Press On Application

3/16?????????WRENCH SIZE)SOCKET HEAD-ALLEN BOLT COVER
------12 OVER PRIMARY COVER ALLEN BOLTS
------1 OVER REGULATOR PLUG BOLT ON LEFT SIDE FRONT OF MOTOR BY OIL FILTER
------1 ON FUEL INJECTION TEMPERATURE SENSOR BOLT RIGHT SIDE JUST ABOVE TRANSMISSION
------6 OVER TRANSMISSION KICKER COVER BOLTS RIGHT SIDE
------1 OVER TRANSMISSION CASE BOLT JUST IN FRONT OF KICKER COVER RIGHT SIDE
------2 OVER OIL PUMP COVER BOLTS RIGHT SIDE
------6 ON TOP TRANSMISSION CASE
------10 ON IGNITION/CAM COVER BOLTS RIGHT SIDE
------8 OVER TAPPET BLOCK BOLTS RIGHT SIDE
------4 ON LEFT SIDE ELECTRONIC BOX

1/4?????????WRENCH SIZE)SOCKET HEAD-ALLEN BOLT COVER
------3 UNDER AND ON RIGHT AND LEFT SIDE OF KICKER COVER ON TRANSMISSION HOUSING

1/4?????????WRENCH SIZE)MUSHROOM STYLE-SOCKET HEAD-ALLEN BOLT COVER
------1 IN THE TIMING HOLE

7/16?????????T25 WRENCH SIZE)HEX/TORX BOLT/NUT COVER
------8 MOUNT(2)ON EACH ROCKER BOX COVER BOLT WITH CUT-OUT TOWARDS BACK

5/16?????????WRENCH SIZE)SOCKET HEAD-ALLEN BOLT COVER
------2 ON FRONT LOWER MOTOR MOUNT ALLEN BOLTS

1/2?????????WRENCH SIZE)HEX BOLT/NUT COVER
------8 ON LEFT SIDE MOTOR CASE HEX BOLTS UNDER FRONT TO REAR OF REAR CYLINDER ON THE LEFT SIDE OF MOTOR
------1 ON SHIFT LEVER

5/8?????????HEX BOLT/NUT COVER
------1 ON LEFT SIDE ONLY ON SWING ARM BOLT UNDER REAR OF PRIMARY COVER

9/16?????????HEX BOLT/NUT COVER
------2 ON LEFT SIDE UPPER MOTOR MOUNT BOLTS ABOVE HORN UNDER GAS TANK
------4 OVER LOWER FRONT MOTOR MOUNTS ON TOP AND ON RIGHT SIDE

DEEP 9/16?????????WRENCH SIZE)HEX BOLT/NUT COVER
------2 OVER LEFT SIDE OF LOWER FRONT MOTOR MOUNT NUTS
------2 ON UPPER AND LOWER RIGHT SIDE MOTOR TO TRANSMISSION CONNECTION
------1 LEFT SIDE UPPER MOTOR TO TRANSMISSION CONNECTION

Fitment:

1999-2005 Dyna Models
